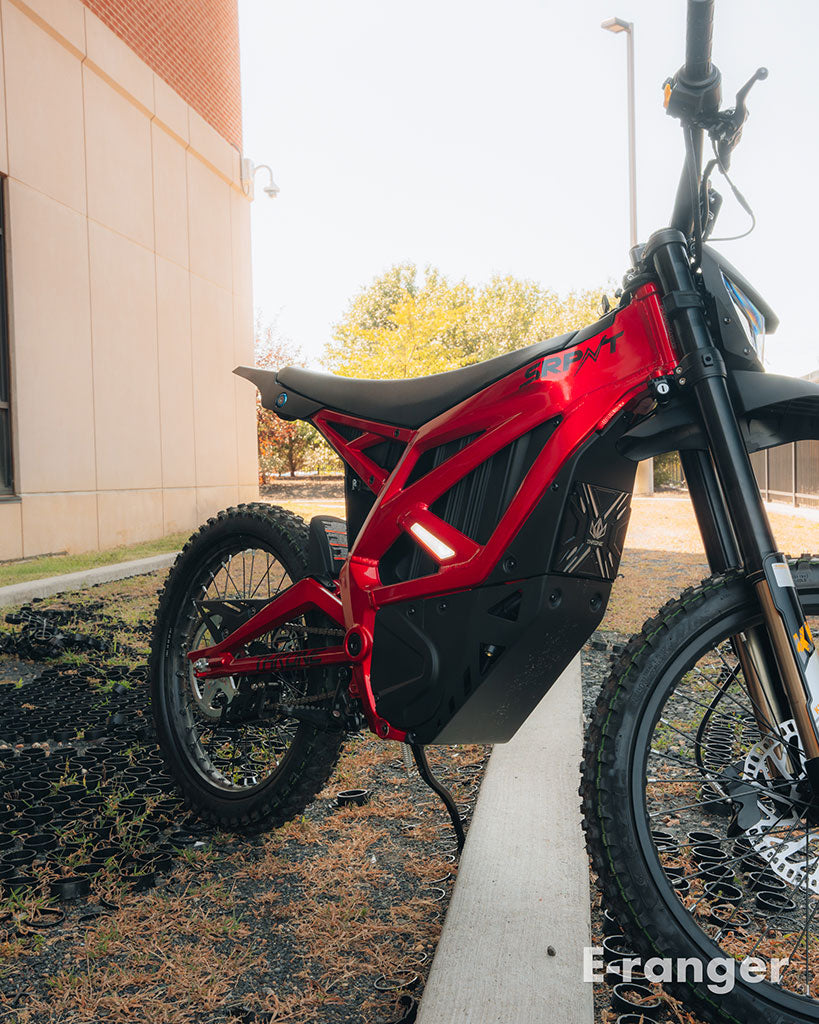

throne SRPNT

MOTOR
Motor Type: PMSM
Mounting Position: Mid
Weight / Motor External Diameter: 9.55kg / 155mm
Motor Axial Length: 130mm
Peak Efficiency: 98%
Cooling Method: Air-Cooled

CONTROLLER
Controller Type: FOC
Dimensions: 160mm x 142mm x 79mm
Peak Efficiency: 98.50%
Power Modes: Eco, High, and Sport

MOTOR POWER SYSTEM
Rated Voltage:72V (DC)
Rated Torque / Peak Torque: 95115Nm
Motor Shaft Output Torque @ 1000RPM: 460Nm
Rated Rotation Speed: 5400rpm
Peak Efficiency: 97%
Range of Efficiency (≥80): 3Nm - 45Nm

TRANSMISSION
Gear Ratio: 13:51
Transmission: Motorcycle Chain & 420 Drive Chain
Model: German Continental Brand, 8M CXA

ELECTRICAL COMPONENTS
Horn: CQC
Battery: 72V 40AH Lithium Battery with 176 LG Cells
Battery Life Time: 500 Cycles
Battery Charge Level: Integrated Battery LCD Display
Charger: 9A
Charging Time: 3.5 Hours
USB Connection: Type C
Speedometer: TFT
LED Headlight & Rear Light: Yes

FRAME DETAILS
Chassis - Swing Arm Material: No.6061 T4&T6 Aluminum
Chassis Construction Method: Forged by 3000 Tons of Pressure
Chassis Surface & Color Processing: Baked Paint
Front Suspension: Inverted Suspension Fork with 200mm Travel
Rear Shock Absorber: KKE Suspension Link System
Wheel Type & Size: Front/Rear :1.4-19 , 1.6-19 Alloy Hubs

DIMENSIONS
Ground Clearance: 270mm
Wheelbase: 1250mm
Seat Height: 85cm
Vehicle Dimensions: 1880mmX805x1130mm

DRIVE
Top Speed: 90km/h
Net Weight: 73kg
Rear Sprocket: 51T
Side Stand: Yes with Kill Switch
Battery Usage: 600 Uses
Carry Capacity: 320lb
